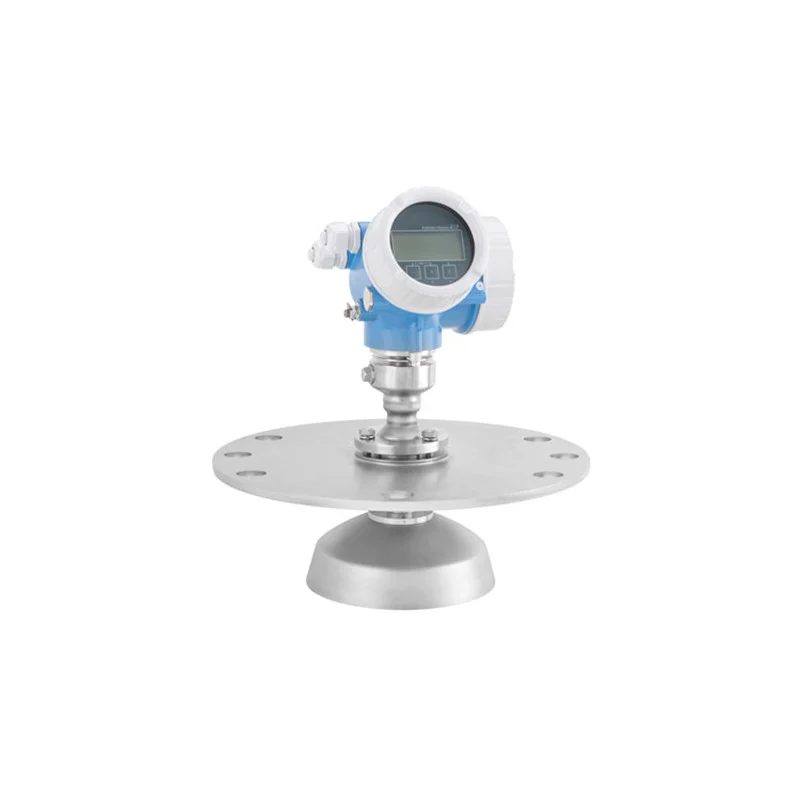

endress+hauser Micropilot FMR56/FMR57 уровнемер радарный
Field of application Micropilot FMR56/FMR57 is particularly designed for light-duty process conditions as they occur in silos or bins for solids. Micropilot free space radar is used for continuous, non-contact level measurement in powdery to granular bulk solids. Dust, filling noises, temperatu...
Описание
маркер
Field of application
Micropilot FMR56/FMR57 is particularly designed for light-duty process conditions as they occur in silos or bins for solids. Micropilot free space radar is used for continuous,
non-contact level measurement in powdery to granular bulk solids. Dust, filling noises, temperature layers and gas layers do not affect the measurement.
PP-plated horn antenna can be easily aligned to the surface of the solids by the mounting bracket or a turnable seal.
-
Process connections: Mounting bracket or slip-on flange
-
Temperature: -40 to +80°C (-40 to +176°F)
-
Pressure: -1 to +3bar (-14.5 to +43.5psi)
-
Maximum measuring range: 100m (98ft)
-
K-band: 26GHz
-
International explosion protection certificates, SIL, 5-point linearity protocol
Benefits
-
Reliable measurement even for changing product and process conditions
-
HistoROM data management concept for fast and easy commissioning, maintenance and diagnostics
-
Highest reliability even in the presence of obstructions in the vessel due to new Multi-Echo Tracking evaluation
-
Hardware and software developed according to IEC 61508 up to SIL3 (in homogeneous redundancy)
-
Heartbeat Technology for a cost-effective and safe plant operation during the entire life cycle
-
Seamless integration into control or asset management systems and intuitive, menu-guided operation concept (on-site or via the control system)
-
World’s easiest proof test concept for SIL and WHG saves time and cost
